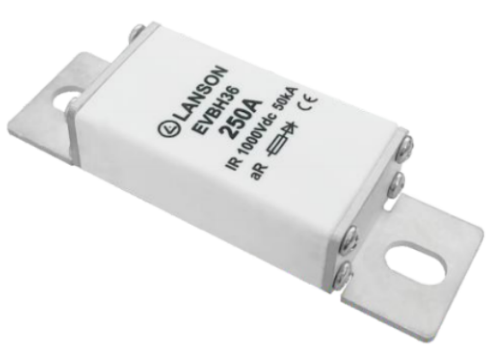

Series image: for reference only

1000VDC Plate Type Square Bolt Connection Fuse

Manufacturer：	LANSON
Product Series：	EVBH36
Product Type：	1000VDC Plate Type Square Bolt Connection Fuse
current Rating：	125A-250A
Voltage Rating：	1000VDC
Class of Operation：	EV fuse
Operating Temperature：	-40℃～120℃
	View more
	Retract

Data Sheet：	EVBH36.pdf
Electronic：	LANSON_Product_Catalogue.pdf

Export Page to PDF
