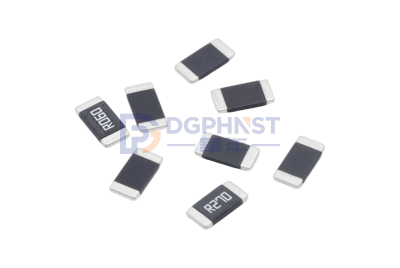

PMSH2512M3W0R120F,WALTER,Metal Current Sensing Chip Resistor

PMSH2512M3W0R120F

Metal Current Sensing Chip Resistor ,2512 ,0.12R(120mR) ,±1% ,3W ,MnCu ,±50PPM

✖

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_JAP.pdf

Expand

Walter_ Profile_JAP.pdf
Walter_ Profile_ENG.pdf
Walter_Profile_CN.pdf

Data Sheet： PMSB_PMSH2512-Series_V001(1).pdf

Electronic： Walter_ Product_overview.pdf

Expand

Walter_ Product_overview.pdf
Walter_POWER_Fuses.pdf
Walter_Components_Catalog.pdf

Product number：	R09-2512-R120F1RM11JPSH0
Manufacturer Product Number：	PMSH2512M3W0R120F
Manufacturer ：	WALTER
Series ：	WALTER-PMSH
Type ：	Metal Current Sensing Chip Resistor
Size ：	2512
Resistance Value ：	0.12Ω(120mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±50PPM
Resistance Power ：	3W
Description：	Metal Current Sensing Chip Resistor ,2512 ,0.12R(120mR) ,±1% ,3W ,MnCu ,±50PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	WALTER
Product Series	MSH2512-Series
Product Type	Metal Strip Current Sensing Resistor
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)
Material	MnCu,Cu/FeCrAl,Cu
Power Rating	1W/2W/3W
Resistance Value	0.5mR-56mR
Resistance Tolerance	±0.5% ;F=±1% ; G=±2%
Size	2512
Protective coating	Flame-retardant epoxy, meets UL- 94-V0 requirements (black)
Plating layer	Sn﹑Ni
TCR (ppm/℃)	±150;±100;±50
Operating Temperature	-55℃～170℃
STORAGE CONDITIONS	Under airtight in temperature+10℃～40℃、relative humidity ≦75% can store 2 years
MPQ	3000/4000
Termination Style	SMD

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_JAP.pdf
	Walter_ Profile_ENG.pdf
	Walter_Profile_CN.pdf
Data Sheet	PMSB_PMSH2512-Series_V001(1).pdf
Electronic	Walter_ Product_overview.pdf
	Walter_POWER_Fuses.pdf
	Walter_Components_Catalog.pdf

Lead time： Estimated delivery date 2026-03-26
