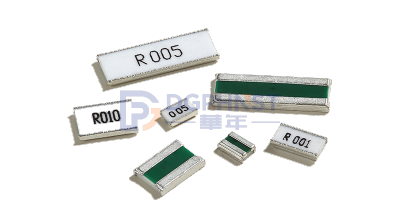

HTA0805C1W0R500F,WALTER,Automotive Resistor

HTA0805C1W0R500F

Automotive Resistor ,0508 ,0.5R(500mR) ,±1% ,1W ,MnCu ,±50PPM

✖

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_ENG.pdf

Expand

Walter_ Profile_ENG.pdf
Walter_ Profile_JAP.pdf
Walter Profile-CN-2026.pdf

Data Sheet： SWE-GEN-050-001_HTA-Series规格书.pdf

Electronic： Walter_Components_Catalog.pdf

Expand

Walter_Components_Catalog.pdf
Walter_ Product_overview.pdf
Walter_POWER_Fuses.pdf

REACH Report： WALTER_REACH240

Product number：	R15-0508-R500F1TM11JHTA0
Manufacturer Product Number：	HTA0805C1W0R500F
Manufacturer ：	WALTER
Series ：	WALTER-HTE Auto
Type ：	Automotive Resistor
Size ：	0508
Resistance Value ：	0.5Ω(500mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±50PPM
Resistance Power ：	1W
Description：	Automotive Resistor ,0508 ,0.5R(500mR) ,±1% ,1W ,MnCu ,±50PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	WALTER
Product Series	WALTER-HTE Auto
Product Type	Automotive Resistor
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_ENG.pdf
	Walter_ Profile_JAP.pdf
	Walter Profile-CN-2026.pdf
Data Sheet	SWE-GEN-050-001_HTA-Series规格书.pdf
Electronic	Walter_Components_Catalog.pdf
	Walter_ Product_overview.pdf
	Walter_POWER_Fuses.pdf
REACH Report	WALTER_REACH240

Lead time： Estimated delivery date when out of stock 2026-08-13
