ESRC41F4W0R010K02G,ELLON,Low-Resistance Shunt Resistor

ESRC41F4W0R010K02G

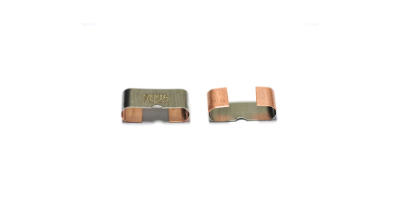

Low-Resistance Shunt Resitor ,11*3.15*3.3mm ,0.01R(10mR) ,±1% ,4W ,KARMA ,±50PPM

✖

The image is for reference only, please refer to the drawing for details

Data Sheet： ESRC_4320_4312.pdf

RoHs Report： Rohs_25_06.pdf

REACH Report： Reach_25_06.pdf

Product number：	R08-4312-R010F1HKA1JERCF
Manufacturer Product Number：	ESRC41F4W0R010K02G
Manufacturer ：	ELLON
Series ：	ELLON-ESRC
Type ：	Low-Resistance Shunt Resistor
Size ：	113.153.3mm
Resistance Value ：	0.01Ω(10mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±50PPM
Resistance Power ：	4W
Description：	Low-Resistance Shunt Resitor ,113.153.3mm ,0.01R(10mR) ,±1% ,4W ,KARMA ,±50PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	ELLON
Product Series	ELLON-ESRC
Product Type	Low-Resistance Shunt Resistor
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Data Sheet	ESRC_4320_4312.pdf
RoHs Report	Rohs_25_06.pdf
REACH Report	Reach_25_06.pdf

Lead time： Estimated delivery date 2026-07-11
