ESRH51F7W0M70M02G,ELLON,Low-Resistance Shunt Resistor

ESRH51F7W0M70M02G

Low-Resistance Shunt Resitor ,5931 ,0.0007R(0.7mR) ,±1% ,7W ,MnCu ,±100PPM

✖

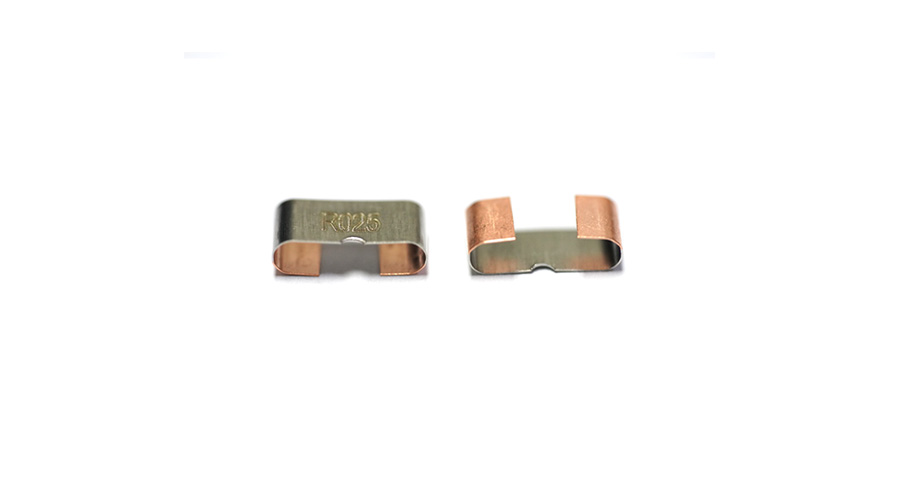

The image is for reference only, please refer to the drawing for details

Data Sheet： ESRH_25_REV11.pdf

RoHs Report： esr_rohs_2024_7.pdf

Expand

esr_rohs_2024_7.pdf
Rohs_25_06.pdf

REACH Report： ESR_REACH_2024_7.pdf

Expand

ESR_REACH_2024_7.pdf
Reach_25_06.pdf

Product number：	R08-5931-0M70F1EM11LESHF
Manufacturer Product Number：	ESRH51F7W0M70M02G
Manufacturer ：	ELLON
Series ：	ELLON-ESRH
Type ：	Low-Resistance Shunt Resistor
Size ：	5931
Resistance Value ：	0.0007Ω(0.7mΩ)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±100PPM
Resistance Power ：	7W
Description：	Low-Resistance Shunt Resitor ,5931 ,0.0007R(0.7mR) ,±1% ,7W ,MnCu ,±100PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	ELLON
Product Series	ELLON-ESRH
Product Type	Low-Resistance Shunt Resitor
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Data Sheet	ESRH_25_REV11.pdf
RoHs Report	esr_rohs_2024_7.pdf
	Rohs_25_06.pdf
REACH Report	ESR_REACH_2024_7.pdf
	Reach_25_06.pdf

Lead time： Estimated delivery date 2026-04-16

Quantity

Unit Price

5

$0.585166

20

$0.497391

100

$0.374506

300

$0.298435

Quantity

Unit Price

1000

$0.228215

3000

$0.163846

* Order quantity ：

MPQ：2000

MOQ： 2000

MOQ：5

When the purchase quantity is less than the inventory, you can purchase directly, the purchase quantity is: N * MOQ
When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: N * MPQ
