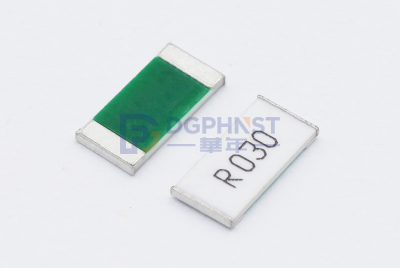

STE2512M2W0R620F,WALTER,Metal Current Sensing Chip Resistor

STE2512M2W0R620F

Metal Current Sensing Chip Resistor ,2512 ,0.62R(620mR) ,±1% ,2W ,MnCu ,±50PPM

✖

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_JAP.pdf

Expand

Walter_ Profile_JAP.pdf
Walter_ Profile_ENG.pdf
Walter_Profile_CN.pdf

Data Sheet： Walter_STE_M.pdf

Electronic： Walter_POWER_Fuses.pdf

Expand

Walter_POWER_Fuses.pdf
Walter_ Product_overview.pdf
Walter_Components_Catalog.pdf

RoHs Report： ChiPCSRFuse系列ROHS A222011430810400101R1.pdf

Expand

ChiPCSRFuse系列ROHS A222011430810400101R1.pdf
20220401 Current sensing resistor+A2220114308101010（华德）CSR RoHS(1).pdf

REACH Report： WALTER_REACH240

Product number：	R09-2512-R620F1SM11JSTE0
Manufacturer Product Number：	STE2512M2W0R620F
Manufacturer ：	WALTER
Series ：	WALTER-STEM
Type ：	Metal Current Sensing Chip Resistor
Size ：	2512
Resistance Value ：	0.62Ω(620mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±50PPM
Resistance Power ：	2W
Description：	Metal Current Sensing Chip Resistor ,2512 ,0.62R(620mR) ,±1% ,2W ,MnCu ,±50PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Product Type	Metal Foil Current Sensing Resistor
Resistance Value	R002-R700
Resistance Tolerance	±0.5%(D) / ±1%(F)
Size	0603/0805/1206/2010 /2512/3921/4527
Power Rating	1/2W~4W
Material	MnCu alloy
Substrate	Alumina Ceramic
Adhesion layer	Epoxy
Resistive element	Cu alloy
Terminal electrode	Cu / Ni / Sn
Protective coating	Flame-retardant epoxy
Marking coating	Flame-retardant epoxy
Operating Temperature	-55℃～170℃
Storage Conditions	10℃~40℃
Preheating	145 ± 15℃, max. 120 sec
Soldering	min. 220℃, max. 60 sec.
Maximum temperature	260±5℃, max. 10sec.
Rework Temperature （hot air equipment）	350℃,3~5seconds
Termination Style	SMD
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_JAP.pdf
	Walter_ Profile_ENG.pdf
	Walter_Profile_CN.pdf
Data Sheet	Walter_STE_M.pdf
Electronic	Walter_POWER_Fuses.pdf
	Walter_ Product_overview.pdf
	Walter_Components_Catalog.pdf
RoHs Report	ChiPCSRFuse系列ROHS A222011430810400101R1.pdf
	20220401 Current sensing resistor+A2220114308101010（华德）CSR RoHS(1).pdf
REACH Report	WALTER_REACH240

Lead time： Estimated delivery date when out of stock 2026-04-24
