FSC-F400MV2T01000BG,WALTER,Ceramic Tube Fuses

FSC-F400MV2T01000BG

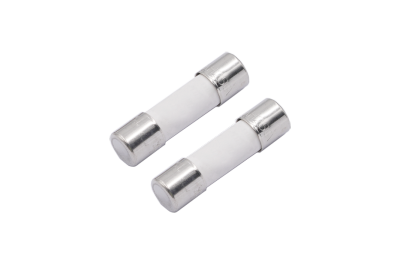

Ceramic Tube Fuses ,5.2*20 ,400mA ,250VAC ,Fast Acting Type ,Axial Without Lead

✖

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_ENG.pdf

Expand

Walter_ Profile_ENG.pdf
Walter_Profile_CN.pdf
Walter_ Profile_JAP.pdf

Data Sheet： Walter_FSC.pdf

Electronic： Walter_ Product_overview.pdf

Expand

Walter_ Product_overview.pdf
Walter_Components_Catalog.pdf
Walter_POWER_Fuses.pdf

Product number：	F04-5220-A400Y7FBFSCA
Manufacturer Product Number：	FSC-F400MV2T01000BG
Manufacturer ：	WALTER
Series ：	WALTER-FSC
Type ：	Ceramic Tube Fuses
Size ：	5*20mm
Current Value ：	400mA
Breaking Series ：	Fast Acting Type
Voltage ：	AC250V
Termination Style ：	Axial Without Lead
Description：	Ceramic Tube Fuses ,5.2*20 ,400mA ,250VAC ,Fast Acting Type ,Axial Without Lead

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	WALTER
Product Series	WALTER-FSC
Product Type	Ceramic Tube Fuses
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_ENG.pdf
	Walter_Profile_CN.pdf
	Walter_ Profile_JAP.pdf
Data Sheet	Walter_FSC.pdf
Electronic	Walter_ Product_overview.pdf
	Walter_Components_Catalog.pdf
	Walter_POWER_Fuses.pdf

Lead time： Estimated delivery date 2026-05-22
