MSTC0201MW25R005F,WALTER,Metal Current Sensing Chip Resistor

MSTC0201MW25R005F

Metal Current Sensing Chip Resistor ,0201 ,0.005R(5mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM

✖

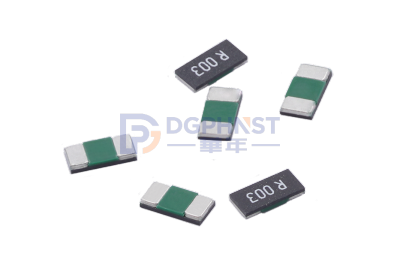

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_JAP.pdf

Expand

Walter_ Profile_JAP.pdf
Walter_ Profile_ENG.pdf
Walter Profile-CN-2026.pdf

Data Sheet： MSTC0201-001.pdf

Electronic： Walter_Components_Catalog.pdf

Expand

Walter_Components_Catalog.pdf
Walter_ Product_overview.pdf
Walter_POWER_Fuses.pdf

Product number：	R09-0201-R005F1VM11LMST0
Manufacturer Product Number：	MSTC0201MW25R005F
Manufacturer ：	WALTER
Series ：	WALTER-MSTC-0201
Type ：	Metal Current Sensing Chip Resistor
Size ：	0201
Resistance Value ：	0.005Ω(5mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±100PPM
Resistance Power ：	1/4W
Description：	Metal Current Sensing Chip Resistor ,0201 ,0.005R(5mR) ,±1% ,1/4W(0.25W) ,MnCu ,±100PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Manufacturer	WALTER
Product Series	WALTER-MSTC-0201
Product Type	Metal Current Sensing Chip Resistor
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)
Product Series	Metal Current Sensing Chip Resistor
Size	0402
Material	MnCu alloy
Power Rating	0.33W
Resistance Value	5mΩ
Resistance Tolerance	±1%
TCR (ppm)	±100
Substrate	Alumina Ceramic
Resistive element	Cu - alloy
Adhesion layer	Epoxy
Terminal electrode	Sn﹑Ni﹑Cu
Protective coating	UL- 94-V0 requirements(green)
Marking coating	UL- 94-V0 requirements (black)
Operating Temperature	-55℃～155℃
Storage Conditions	temperature+10℃～40℃；humidity ≦75%
Solder reflow Preheating	145 ± 15℃, max.120 sec.
Reflow Soldering Solder	min. 220℃, max. 60 sec.
Maximum temperature	260±5℃, max. 10sec.
Rework temperature（hot air equipment）	350℃, 3~5seconds
MPQ	10000PCS
Unit weight	0.01g±0.003g

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_JAP.pdf
	Walter_ Profile_ENG.pdf
	Walter Profile-CN-2026.pdf
Data Sheet	MSTC0201-001.pdf
Electronic	Walter_Components_Catalog.pdf
	Walter_ Product_overview.pdf
	Walter_POWER_Fuses.pdf

Lead time： Estimated delivery date when out of stock 2026-08-13

Quantity

Unit Price

10

$0.165223

50

$0.123918

300

$0.103265

Quantity

Unit Price

1000

$0.082612

5000

$0.068155

* Order quantity ：

MPQ：1

MOQ： 1

MOQ：10

When the purchase quantity is less than the inventory, you can purchase directly, the purchase quantity is: N * MOQ
When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: N * MPQ
