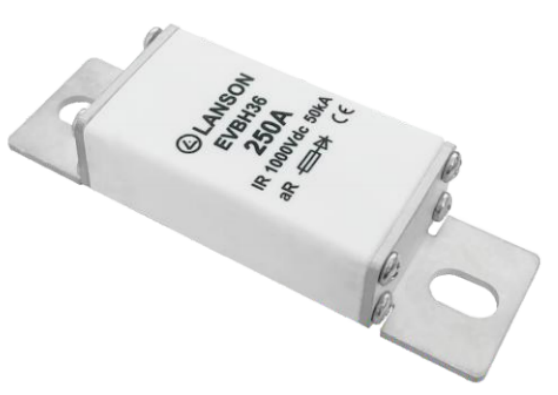

The image is for reference only, please refer to the drawing for details
| Product number： | F08-1236-250AS10VH36A |
| Manufacturer Product Number： | EVBH36-250A |
| Manufacturer ： | LANSON |
| Series ： | LANSON-EVBH36 |
| Type ： | Power Fuse(Speed Fuse) |
| Size ： | 112*36*23mm |
| Current Value ： | 250A |
| Voltage ： | DC1000V |
| Termination Style ： | Plate Type Square Bolt |
| Description： | Power Fuse ,112*36*23mm ,250A ,1000V ,Plate Type Square Bolt |
| Attribute Name | Attribute Value |
|---|---|
| Manufacturer | LANSON |
| Product Series | EVBH36 |
| Product Type | 1000VDC Plate Type Square Bolt Connection Fuse |
| current Rating | 125A-250A |
| Voltage Rating | 1000VDC |
| Class of Operation | EV fuse |
| Operating Temperature | -40℃～120℃ |
| File Type | File Name |
|---|---|
| Data Sheet | EVBH36.pdf |
| Electronic | LANSON_Product_Catalogue.pdf |
Lead time： Estimated delivery date 2026-07-07
