STE1206C1W0R200FA,WALTER,Automotive Resistor

STE1206C1W0R200FA

Automotive Resistor ,1206 ,0.2R(200mR) ,±1% ,1W ,NiCu ,±50PPM

✖

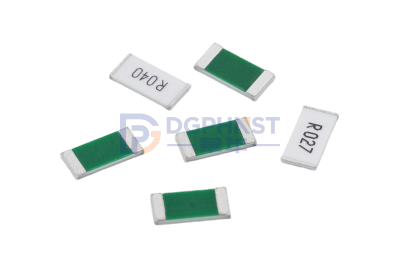

The image is for reference only, please refer to the drawing for details

Company Profile： Walter_ Profile_JAP.pdf

Expand

Walter_ Profile_JAP.pdf
Walter Profile-CN-2026.pdf
Walter_ Profile_ENG.pdf

Data Sheet： STE-Auto-series.pdf

Electronic： Walter_ Product_overview.pdf

Expand

Walter_ Product_overview.pdf
Walter_POWER_Fuses.pdf
Walter_Components_Catalog.pdf

REACH Report： WALTER_REACH240

Product number：	R15-1206-R200F1TC21JSTA0
Manufacturer Product Number：	STE1206C1W0R200FA
Manufacturer ：	WALTER
Series ：	WALTER-STE-M-Auto
Type ：	Automotive Resistor
Size ：	1206
Resistance Value ：	0.2Ω(200mR)
Resistance Tolerance ：	±1%
TCR(ppm) ：	±50PPM
Resistance Power ：	1W
Description：	Automotive Resistor ,1206 ,0.2R(200mR) ,±1% ,1W ,NiCu ,±50PPM

Series Introduce Find Similar

Attribute Name	Attribute Value
Product Type	Metal Foil Current Sensing Resistor
Resistance Value	R002-R700
Resistance Tolerance	±0.5%(D) / ±1%(F)
Size	0603/0805/1206/2010 /2512/3921/4527
Power Rating	1/2W~4W
Material	MnCu alloy
Substrate	Alumina Ceramic
Adhesion layer	Epoxy
Resistive element	Cu alloy
Terminal electrode	Cu / Ni / Sn
Protective coating	Flame-retardant epoxy
Marking coating	Flame-retardant epoxy
Operating Temperature	-55℃～170℃
Storage Conditions	10℃~40℃
Preheating	145 ± 15℃, max. 120 sec
Soldering	min. 220℃, max. 60 sec.
Maximum temperature	260±5℃, max. 10sec.
Rework Temperature （hot air equipment）	350℃,3~5seconds
Termination Style	SMD
EU RoHS	Compliant(2011/65/EU)
EU REACH	Dose not contain REACH SVHC(1907/2006/EC)

Series Introduce Find Similar

File

File Type	File Name
Company Profile	Walter_ Profile_JAP.pdf
	Walter Profile-CN-2026.pdf
	Walter_ Profile_ENG.pdf
Data Sheet	STE-Auto-series.pdf
Electronic	Walter_ Product_overview.pdf
	Walter_POWER_Fuses.pdf
	Walter_Components_Catalog.pdf
REACH Report	WALTER_REACH240

2026-08-28 expected arrival 10000

Quantity

Unit Price

5

$0.227174

20

$0.196200

100

$0.175542

300

$0.154897

Quantity

Unit Price

1000

$0.134238

5000

$0.113580

* Order quantity ：

MPQ：5000

MOQ： 5000

MOQ：5

When the purchase quantity is less than the inventory, you can purchase directly, the purchase quantity is: N * MOQ
When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: N * MPQ
