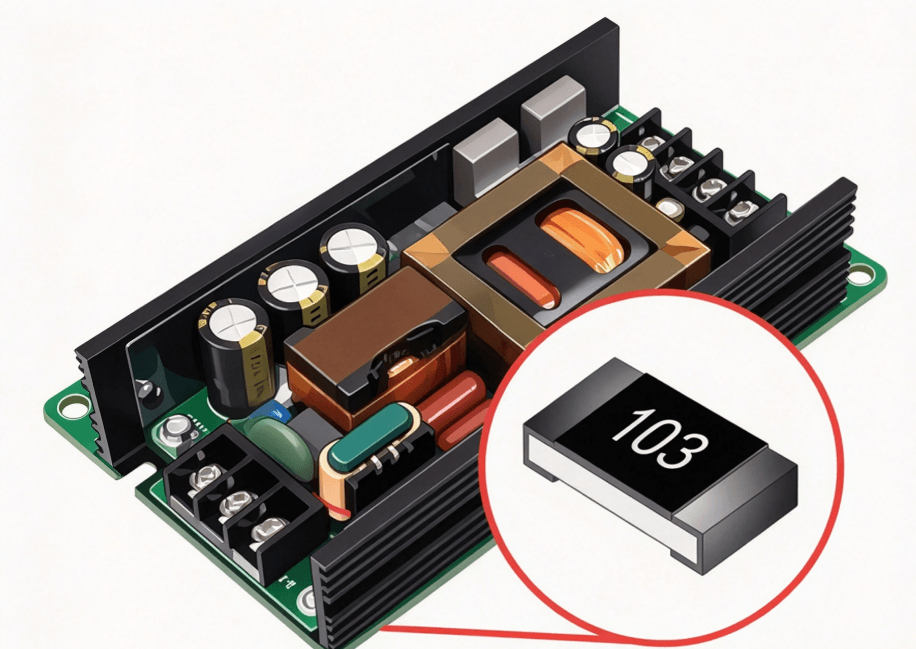

The stable operation of industrial control switching power supplies relies heavily on the reliability of the three core circuits. However, issues such as power-on surges, long-term high-temperature drift, and residual voltage after power-off are the main causes of power failures, component damage, and maintenance risks in industrial environments.
Conventional surface-mount resistors are limited by power, process, and heat resistance performance, making them unsuitable for the harsh conditions of industrial equipment that operates 24/7, experiences frequent power fluctuations, and has poor heat dissipation in enclosed environments. These conditions can easily lead to resistance drift, component failure, and circuit anomalies.
The Tian Er CRH series high-power thick-film resistors are specifically designed for the feedback, power-on, and power-off stages of switching power supplies. With excellent high-temperature resistance, surge resistance, and aging resistance, they overcome the performance shortcomings of conventional resistors, precisely addressing various field issues in industrial power supplies and building a solid hardware foundation for long-term stable operation of industrial equipment.
1. Three Core Circuits of Switching Power Supplies
The feedback, power-on, and power-off stages of switching power supplies require resistors with high heat resistance and impact resistance. This high-power resistor is precisely adapted to the core operating conditions, overcoming the performance limitations of conventional resistors.
1. Auxiliary Winding Voltage Dividing Resistor: Solving Drift Failure Under Long-Term High Temperatures
The voltage feedback loop of the auxiliary winding may seem to have low power consumption, but once the device is powered on, it continuously generates heat for 24 hours. Ordinary resistors in the same package will age quickly under high temperatures, causing resistance drift, leading to sampling errors in feedback voltage. This may result in unstable output, light load abnormalities, or even mis-protection and system shutdown.
The CRH series high-power resistor provides sufficient power margin, with excellent high-temperature and aging resistance performance, ensuring long-term stable voltage division accuracy, preventing failures caused by temperature drift in the feedback loop, and significantly improving the long-term operational stability of the power supply system.
2. Input Side Current Limiting Resistor: Withstanding Power-On Surges and Protecting Core Components
An instantaneous large current surge occurs when the device is powered on, which can easily damage core components like rectifier bridges and MOSFETs. This 750Ω high-power resistor can be connected in series on the input side of the power supply, effectively suppressing surge current and absorbing transient pulse energy, thus protecting downstream power components from high voltage and current damage during power-on.
Compared to ordinary low-power resistors, its pulse carrying capacity is stronger and less likely to be damaged under repeated start-stop and power fluctuation scenarios, making it suitable for the high-frequency working characteristics of industrial power supplies.
3. Discharge Load Resistor for Power-Off: Rapidly Discharging Residual Voltage to Ensure Maintenance Safety
After power-off, the output side of the switching power supply and high-voltage filter capacitors retain residual voltage, which may interfere with the logic reset of the next startup, or pose an electric shock hazard during maintenance.
CRH1206J750RP05Z can serve as a dedicated discharge load resistor, rapidly discharging the residual voltage in the circuit after power-off, ensuring normal logic for the next startup and enhancing the safety of on-site maintenance operations.
2. Thick-Film Technology to Tackle Industrial Power Supply Challenges
The on-site conditions of switching power supplies and industrial control equipment are far more complex than laboratory tests: 24-hour continuous power-on aging, poor heat dissipation in enclosed cabinets, large temperature fluctuations, and frequent power surges. This is also the core reason why many lab-verified solutions fail in real-world applications.
Ordinary low-power surface-mount resistors, limited by their process structure, experience significant resistance drift at high temperatures, often leading to IO port current limiting failure, signal anomalies, and false protection triggers.

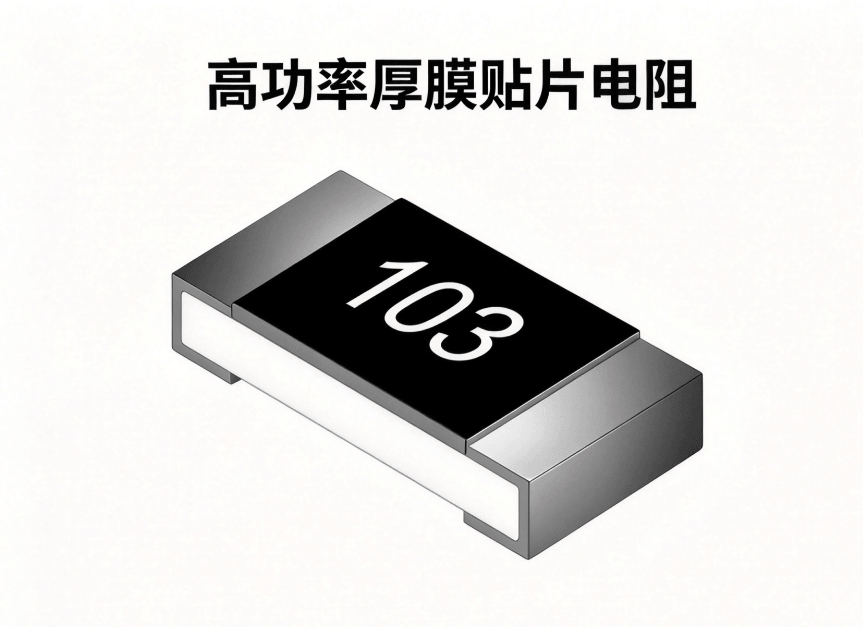

The Tian Er CRH high-power thick-film resistor uses mature high-power thick-film technology, with a denser resistor film structure, offering much better heat resistance and aging resistance compared to conventional surface-mount resistors.
In industrial continuous operation scenarios, it can maintain stable resistance values for a long time without performance degradation due to continuous operation. At the same time, its optimized heat dissipation structure also adapts well to the conditions of high power supply heat generation and poor cabinet heat dissipation, reducing power failures, equipment downtime, and circuit burning issues at the source, effectively extending the overall service life of the equipment.
3. Precise Selection Criteria: Using the Right Component Is the Optimal Solution
Each component has its own specific application scenario. Clearly defining usage boundaries can help avoid design risks and improve solution stability.
Highly Suitable Scenarios
- Switching Power Supplies: Auxiliary voltage division, input current limiting, capacitor discharge, and general power circuits
- Industrial Control Equipment: IO port current limiting protection, industrial board power load, and continuous heating circuits
- General power circuits requiring high power endurance, surge resistance, and long-term stability
This product has J-level precision (±5%) and maximum power reliability, but it cannot meet the strict requirements for precision sampling and weak signal detection. In such cases, high-precision resistor materials should be selected.
In Conclusion
The Tian Er CRH high-power thick-film resistor, based on solid thick-film technology and ample power margin, is precisely adapted to the core operating conditions of the three key circuits of switching power supplies. It can effectively resist power-on surges, suppress high-temperature drift, and quickly release residual voltage, solving various circuit faults in the continuous operation of industrial equipment. It also adapts to most harsh industrial power circuit scenarios.
If you need industrial-grade resistor selection or scheme adaptation consultation, please contact @pro[]@ser[], and we will provide full support for your industrial power supply solution!
