With the rapid development of China's new energy vehicle and energy storage power battery industry, Shenzhen has become a core gathering area of the new energy vehicle electronics supply chain in China. Relying on the advantages of a complete industrial chain, a large number of new energy BMS R&D companies have taken root in Shenzhen, offering high-performance battery management solutions for passenger cars, commercial vehicles, energy storage stations, and engineering machinery lithium battery systems.
In the entire BMS hardware system, current sampling resistors are core components. The sampling accuracy, temperature drift performance, and automotive reliability directly affect the safety of lithium batteries. A small automotive sampling resistor is an essential component that cannot be ignored for ensuring the precision of battery monitoring and the safe operation of the entire vehicle.

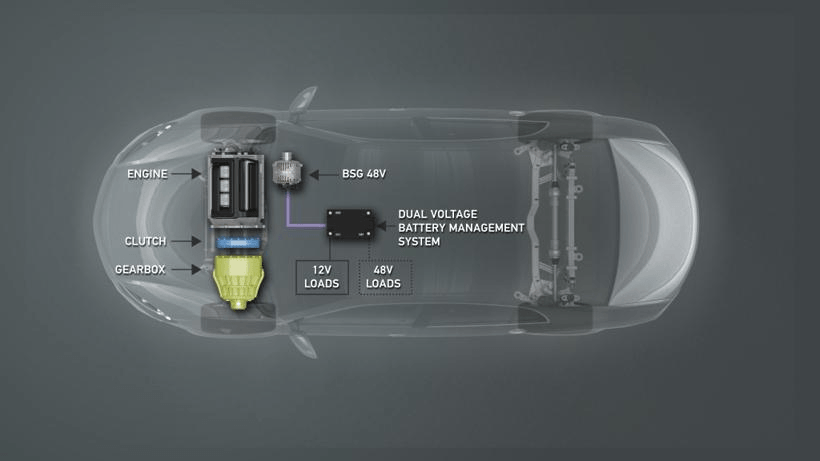

BMS as the core brain of lithium batteries, sampling accuracy determines system safety
BMS, as the core control system of power batteries, is responsible for current collection during charging and discharging, single cell voltage monitoring, remaining capacity (SOC) estimation, battery health (SOH) diagnosis, overcurrent protection, and cell balancing. All system algorithm operations and safety decisions are based on accurate and stable current sampling data.
If current sampling is biased, it can cause cascading data errors, not only leading to inaccurate vehicle range and power display, but also causing overcurrent protection failure and delayed thermal runaway warnings, which pose safety risks to power batteries.
In most BMS project R&D and debugging processes in Shenzhen, there is a common issue: after software algorithms pass simulation verification and sampling data is normal under laboratory ambient conditions, faults such as SOC drift, false triggering of overcurrent protection, and chaotic charge and discharge logic frequently occur during actual testing stages involving vehicle high and low temperature cycles and vibration endurance.
After checking core modules like chips and circuits, R&D personnel often fail to locate the root cause of the fault. After reviewing many projects, it has been confirmed that these faults are not due to main controller scheme defects, but rather because ordinary industrial or consumer-grade resistors were mistakenly used instead of automotive-grade sampling resistors during the R&D phase, leading to reliability issues caused by the inability of components to adapt to the complex operating conditions of vehicles.
Harsh vehicle conditions, ordinary resistors struggle to adapt to lithium battery scenarios
The actual operating conditions of vehicle power batteries are far more severe than those in laboratory environments. The temperature range in the vehicle engine compartment can reach from -55°C to 155°C, with frequent cold and hot alternations, while the body remains in long-term vibration. In fast-charging scenarios, there may also be repeated high-current impacts on the circuit.
Ordinary industrial alloy resistors are suitable for conventional equipment environments with moderate temperatures, low impact, and low vibration. However, they are prone to resistance drift and electrode pad cracking when operated for a long time in the extreme environment of vehicles, resulting in baseline shifts and data distortion in current sampling.
AEC-Q200 automotive certification is the basic entry standard for passive components to enter the new energy vehicle BMS supply chain. This standard sets more than ten reliability test items, including temperature cycling, high temperature and humidity, mechanical shock, pulse overload, and long-term high temperature storage, to verify the long-term operational stability of components from material, packaging, and production process perspectives.
Only sampling resistors that pass the full set of AEC-Q200 tests can meet the requirements for long-term stable operation of the main current sampling loop in new energy BMS and adapt to the harsh working conditions of vehicles.
Core Performance Analysis: Key Technical Advantages of Automotive Sampling Resistors
Automotive sampling resistors use a milliohm-level low-resistance design, connected in series in the main power battery circuit, and calculate the real-time circuit current by collecting the voltage drop across the resistor. This fundamental signal conversion process places strict requirements on the temperature coefficient (TCR), resistance accuracy, thermoelectric potential, parasitic inductance, and power capacity of the component, which are also the core key points distinguishing ordinary resistors from automotive-grade resistors.
The temperature coefficient is a core performance indicator of automotive sampling resistors. During the fast charging process of power batteries, the resistor itself heats up and combines with the high temperature in the engine compartment, quickly increasing the operating temperature of the component.
Ordinary resistors have a high temperature drift value, and their resistance changes significantly when the temperature rises, continuously generating sampling errors that accumulate during the battery charging and discharging process, ultimately causing capacity calculation deviations and exaggerated range displays.
Compliant automotive sampling resistors have excellent low-temperature drift characteristics, maintaining resistance stability under long-term high-temperature conditions, keeping sampling errors within the allowable range of the vehicle design, and providing accurate and reliable basic data for SOC and SOH algorithm calculations.
Low thermoelectric potential and low parasitic inductance are also essential performance features of automotive sampling resistors. Thermoelectric potential generates additional voltage signals that interfere with original sampling data, while high parasitic inductance causes waveform distortion in current sampling during fast charging and high-frequency switching conditions. Automotive sampling resistors can effectively avoid these two interferences through optimized alloy materials and advanced non-inductive structures, ensuring clean and accurate current signals collected by BMS under dynamic conditions.
Deeply rooted in the underlying hardware, building a solid defense for new energy lithium battery safety
BMS safety starts with subtle current sampling.
Power battery safety is the core bottom line of the new energy industry's development. The vehicle safety system is built upon the stable operation of every vehicle component. Although the automotive sampling resistor is a small surface-mount component, it is the first critical checkpoint for current monitoring of power batteries.
For Shenzhen BMS R&D companies, selecting compliant and reliable automotive sampling resistors is not only a necessary condition for passing vehicle reliability certification, but also a practical measure to improve BMS system stability and strengthen product market competitiveness.
In the future, 800V high-voltage fast-charging platforms, large-capacity energy storage batteries, and intelligent BMS technologies will continue to evolve. The charging and discharging power of power batteries will keep increasing, and the industry's requirements for current sampling accuracy, component impact resistance, and wide-temperature stability will further increase.
