In the circuit design of new energy, industrial control, consumer electronics, and lithium battery equipment, current detection accuracy, temperature stability, and miniaturization compatibility have long become key details that restrict equipment performance upgrades. Many issues such as sampling deviation, high-temperature drift, and SMD welding defects ultimately stem from improper selection of current detection resistors.
As a reliable benchmark in the field of passive components, Huade Electronics has been deeply involved in the alloy resistor field for many years. Its MSTC ultra-thin alloy current detection resistor is designed to address common engineering issues such as compact circuits, high-current sampling, and high-temperature conditions.
1. Material and Structural Design, Supporting Current Sampling Accuracy

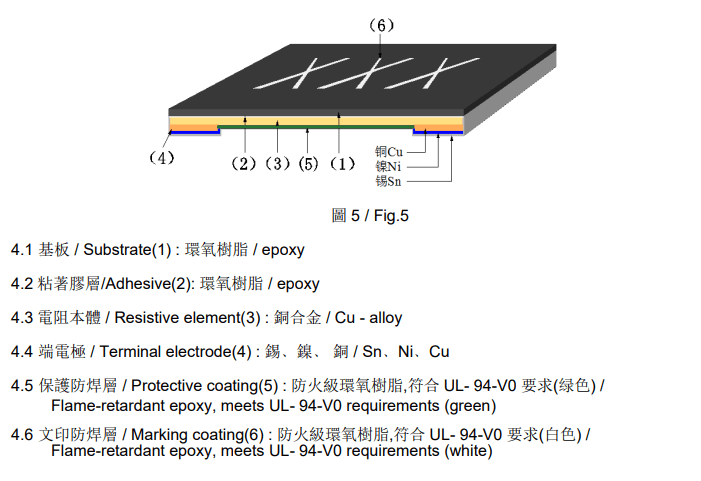

Compared with traditional thick-film resistors, the MSTC series alloy resistors from Huade eliminate the material shortcomings of conventional resistors by adopting a classic combination of high-purity manganese copper alloy resistor body + aluminum oxide ceramic substrate, along with a multi-layer composite electrode structure of Sn, Ni, and Cu, fundamentally improving the conductivity, heat dissipation, and structural stability of the device.
This material and structural solution brings the following performance characteristics:
The temperature coefficient of resistance (TCR) can reach as low as ±75PPM/℃, effectively reducing resistance drift under high and low temperatures. The resistance tolerance supports two levels: 0.5% and 1%, with a resistance range covering 1mΩ~50mΩ, suitable for precise current sampling of small signals. The product meets the UL-94-V0 fireproof rating and can work continuously within an industrial wide-temperature range, reducing the probability of sampling distortion and equipment false triggering failures.
The product has a high power density, capable of carrying greater power within a small package size: 0.33W for 0402 package, 0.5W for 0805 package. Compared with ordinary resistors of the same package specification, its power carrying capacity is significantly better, which can alleviate the selection challenges of small devices with limited volume and high power consumption.
2. Dual Electrode Specifications Available, Suitable for Full-Scenario SMD Requirements
To adapt to different PCB layout, SMD processes, and equipment structure designs, Huade MSTC ultra-thin alloy current detection resistors offer two specifications: short electrodes and standard electrodes, covering most mainstream package sizes, including 0201, 0402, 0603, 0805, 1206, etc.
▶ Standard Electrode Version: Suitable for Conventional Processes
The standard electrode version features a standard terminal electrode design, with balanced welding contact area, matching traditional SMT SMD processes, strong welding consistency, and high yield rate. It is suitable for most consumer electronics, general industrial control, and power adapter scenarios, offering excellent versatility and strong production stability in mass production.
▶ Short Electrode Version: Suitable for High-Density PCBs
For the current trend of device miniaturization and high-density PCB layout, the short electrode version optimizes the electrode structure, shortening the end electrode length to further reduce the device's space occupation, effectively avoiding interference from adjacent components. It is suitable for scenarios with tight layout space, such as portable digital products, micro lithium battery protection boards, and small sensor modules, releasing PCB layout space without changing electrical parameters.
3. Multi-Dimensional Performance Indicators, Reducing Circuit Design Risks
In precision current detection scenarios, even minor performance deviations may affect the overall system stability. The MSTC alloy resistors from Huade focus on practical engineering challenges, achieving comprehensive performance improvements:
- Low Resistance, Low Internal Resistance: Ultra-low milliohm-level resistance, extremely low power consumption during current sampling, reducing circuit energy loss and improving device endurance and efficiency;
- Low Temperature Drift, High Stability: Enhanced by manganese copper alloy materials, it exhibits excellent temperature adaptability, with minimal resistance fluctuation under high and low temperatures, ensuring continuous accurate sampling data;
- Low Inductance, Fast Response: Special alloy process compression results in extremely low parasitic inductance, suitable for high-frequency switching circuits, fast response to current changes, and accurate capture of instantaneous current fluctuations;
- High Reliability, Easy Mass Production: The composite electrode structure resists oxidation and sulfurization, ensuring good welding reliability, suitable for automated mass SMD production, greatly reducing after-sales failure rates.
4. Multi-Scene Implementation, Covering Mainstream Precision Electronic Fields
Thanks to its multiple advantages in size, precision, and stability, the MSTC ultra-thin alloy current detection resistor from Huade has been widely applied in various precision electronic devices, becoming a mass-produced popular component:
1. New Energy Vehicle BMS and OBC
BMS current sampling accuracy directly affects SOC estimation results. MSTC has wide-temperature stability and impact resistance characteristics, adapting to vehicle temperature changes, tracking charge and discharge current fluctuations, and supporting continuous BMS operation.
2. Industrial Control Servo and Inverter
Current sampling requirements for servo drives and inverters include fast response speed and anti-interference capability. This alloy resistor's low reactance and pulse current resistance characteristics allow it to capture dynamic current signals, assisting in improving motor control response and accuracy.
3. AI Server and Communication Power Supply
High-end power modules require high conversion efficiency and reliability. MSTC's low-resistance and low-loss characteristics help improve power conversion efficiency, maintaining long-term performance stability and reducing maintenance pressure on data center equipment.
4. Smart Meters and Precision Measurement Instruments
Metering equipment allows for very small error ranges, and resistance value drift can accumulate into metering errors. MSTC's high precision and long-term stability can meet the measurement requirements throughout the entire lifecycle of metering equipment.
In Conclusion
A tiny resistor has never been a "supporting role" in a solution. Hidden in the corner of the PCB, it silently determines the performance lower limit of the entire equipment.
The MSTC series ultra-thin alloy current detection resistor from Huade, with its solid material process, flexible dual-electrode selection, and high-precision stable performance, perfectly adapts to the modern circuit design needs of miniaturization, high precision, and high reliability. Whether it's a regular mass production project or a high-density miniaturized custom solution, Huade MSTC alloy resistors can serve as alternative components for current sampling.
If you need a complete model list, accurate parameter manual, or selection advice, feel free to leave a message for consultation at 【Huanyan Mall】~
